SMT high speed pick and place machine 136 heads for flexible strip
Description
Feature ① HIGH PRODUCTIVITY
ETON Tech Adjustable Placement Head
Component picking position can be adjusted according to PCB pad pitch, min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor, capacitor,bridge rectifier etc. wide component range.
- Unique Design Component Leaking Detection And Individual Component Refill Function
Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.
- Ultra-high-speed-Capacity
The placement head adopt the method of two times picking and once placing.The placement time greatly minimizedwith the improved placement way, excellent optimum capacity reach 500000CPH.
Feature ② FLEXIBLE PRODUCTION
- Adjust the conveying platform according to various roll to roll strip,range 250±10mm,the max length range is
1M per cycle.
- The distance of feeder station can be flexibly adjusted to achieve group picking and group placing,so as to
realize the function of two time picking and once placing.The range of feeding station is double of placement head,can produce four kinds of materials at the same time.
- Intelligent electric feeder,supporting high-speed machine series.
| Model | T9-2S |
| Dimension |
| Length | 3454mm |
| Width | 3035mm |
| Height | 1777mm |
| Total Weight | 3100kg |
| PCB |
| PCB Length Width | 250 (±10mm)*Any Length |
| PCB Thickness | 0.1-0.5mm |
| PCB Clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Vision System |
| No. of Camera | 10 sets (Digital camera) |
| Vision alignment+Mark correction |
| Mounting Precision | ±0.05mm |
| Mounting Height | ≤5mm |
| Mounting Speed | Double side:500000CPH,single side:250000CPH(Optimum speed) |
| Components | LED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc. |
| Power | 380AC 50HZ |
| Power Consumption | 9.6 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1000 mm |
| Transmission Speed | ＞500mm/sec |
| Transmission Direction | Single ( left—>right or right—Heft) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 2 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding System |
| No. of Feeder station | Double side:136PCS(single side:68PCS) |
| No.of head | Double side:136PCS(single side:68PCS) |
| Feeding way | Intelligent electric feeder with double motor |
Machine application
T9-2S is a high speed pick and place machine, which is apply for flexible light strips of any length
3.1 PCB Size: 250mm*any length
3.2 For Applications
5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.

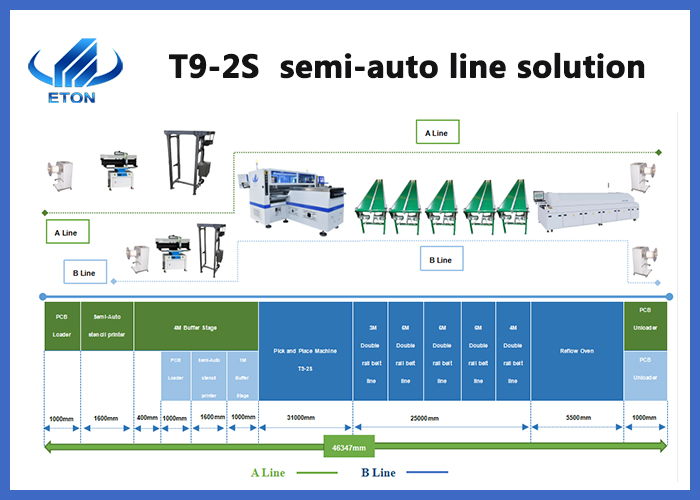

SMT Line solution
