SMT pick and place machine,LED light making machine,LED light production machine.
1.Features:
♦ Auto-optimization feature after coordinates generated
♦ Electronic feeder feeding system .
♦ Flight identification , Vision camera , Mark correction ,more precision
♦ It can produce all kinds of LED light , power driver , electric board , display etc .
♦ IPC9850 Capacity : 35000 CPH
Apply to the SMT machine , PCB , LED hard light board and LED soft lamp strip etc .
Apply to electric board , tube ,driver , bulb , strip , lamp , panel , ceiling light , down light , screen , street light , flood light , etc .
Apply to LED chip , capacitors , resistors , IC , shaped components etc . (intelligent , use widely )
8 nozzles altogether , 20 feeders , partA or partB can be mounted separatly . Easy to operate .
Patent Number : ZL 2011 2 0237740.9/ZL 2011 2 0334606.0
ZL 2012 2 0178869.1/ZL 2012 2 0415505.0
ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0
2 . Technical Parameter :
| Dimension | 1458mm(L) /1226mm(W) /1437mm(H) |
| PCB Length Width | Max . :350mm *500mm Min . :50mm *50mm (W *L ) |
| PCB Thickness | 0.5~3mm |
| Mounting Precision | ±0.02mm |
| Components | LED chip,IC,capacitors,resistors,shaped components etc. |
| Power Comsumption | 4KW/220AC 50HZ |
| Air Force | 0.5mpa |
| System | Windows 7 |
| Mounting Speed | 35000CPH |
3 . Our Advantage :
Date Analysis Compared with other Manufacturers
| Manufacturers/Parameter | Speed | Head | Precision | Patent | service |
| Other company F130 | 15000CHP | 4PCS | 0.03mm | __ __ | NO |
| Other company 5M168 | 18000CHP | 6PCS | 0.03mm | __ __ | NO |
| Our Eton HT-XF | 150000~170000CPH | 34PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-T7 | 100000~130000CPH | 60PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-E8T | 80000CPH | 16PCS | 0.02mm | Technology Patents | service office |
| Data Comparision | 4 to 8 times higher than others | 4 to 8 times higher than others | higher precision | Global First | Support promptly |

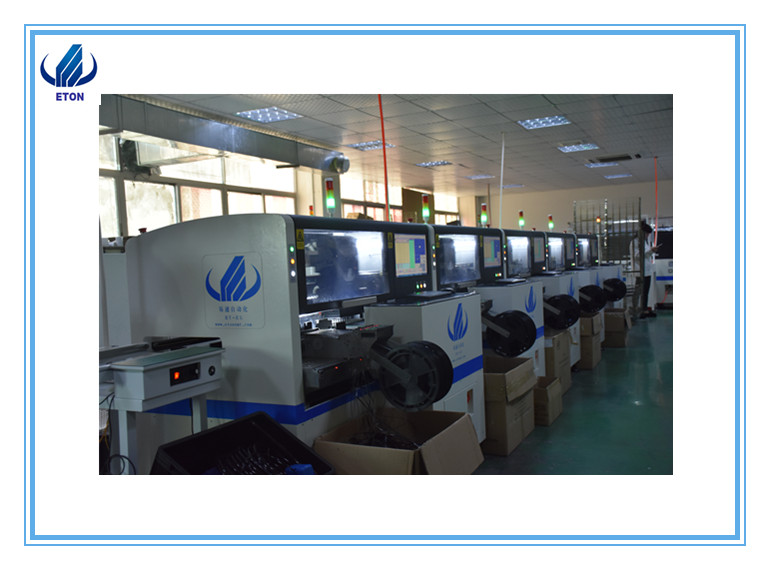

4 . Product Image :
5 .Company Information
Company Profile :
The Global Largest Production Capacity Supplier of LED Production Line
Professional Efficient Technology Development Innovation
Company Five Level Management Policy : sincere business , focus on R&D , manufacture by heart , considerate service , customer trust .
Eton Purpose : To create value for customers , creating benefits for society .
Eton Mission : Professional , Excellent technology , Share the results .
6 .Packaging & Shipping
Package : Standard export package ( Package as per customer ' s requirement )
Shipping : Shenzhen port within 15 days after payment
7 .Our Services
Excellent After-sale Service .
Upgrade the software will be free for whole lifetime of machine .
Visit customer regularly and gather information .
FAQ
1 .How is the SMT pick and place machine HT-E5 multifunctional machine ?
ETON has launched its new Middle-speed SMT Pick and Place Machine , Equipped with a newly developed parallel 8 nozzle head , the ETON SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 20~30% . The ETON Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB " in the printed board mounting process . In addition to increasing the number of components mounted per cycle , ETON Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height .
