SMT pick and place machine,LED light making machine,LED light production machine.
1.Features:
♦Auto-optimization feature after coordinates generated
♦Electronic feeder feeding system.
♦Flight identification,Vision camera,Mark correction,more precision
♦It can produce all kinds of LED light,power driver,electric board,display etc.
♦IPC9850 Capacity: 72000 CPH
Apply to the SMT machine, PCB,LED hard light board and LED soft lamp strip etc.
Apply to electric board,tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,flood light,etc.
Apply to LED chip,capacitors,resistors,IC,shaped components etc.(intelligent,use widely)
16 nozzles altogether,34 feeders,partA or partB can be mounted separatly. Easy to operate.
Patent Number: ZL 2011 2 0237740.9/ZL 2011 2 0334606.0
ZL 2012 2 0178869.1/ZL 2012 2 0415505.0
ZL 2012 2 0415044.7/ZL 2012 2 0415356.8/ZL 2012 2 0415061.0
2.Technical Parameter:
| Dimension | 1950mm(L)/2150mm(W)/1500mm(H) |
| PCB Length Width | Max.:350mm*600mm Min.:50mm*50mm(W*L) |
| PCB Thickness | 0.5~5mm |
| Mounting Precision | ±0.02mm |
| Components | LED chip,IC,capacitors,resistors,shaped components etc. |
| Power Comsumption | 8KW/220AC 50HZ |
| Air Force | 0.5mpa |
| System | Windows 7 |
| Mounting Speed | 72000CPH |
3.Our Advantage:
Date Analysis Compared with other Manufacturers
| Manufacturers/Parameter | Speed | Head | Precision | Patent | service |
| Other company F130 | 15000CHP | 4PCS | 0.03mm | __ __ | NO |
| Other company 5M168 | 18000CHP | 6PCS | 0.03mm | __ __ | NO |
| Our Eton HT-XF | 150000~170000CPH | 34PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-T7 | 100000~130000CPH | 60PCS | 0.02mm | Technology Patents | service office |
| Our Eton HT-E8T | 80000CPH | 16PCS | 0.02mm | Technology Patents | service office |
| Data Comparision | 4 to 8 times higher than others | 4 to 8 times higher than others | higher precision | Global First | Support promptly |

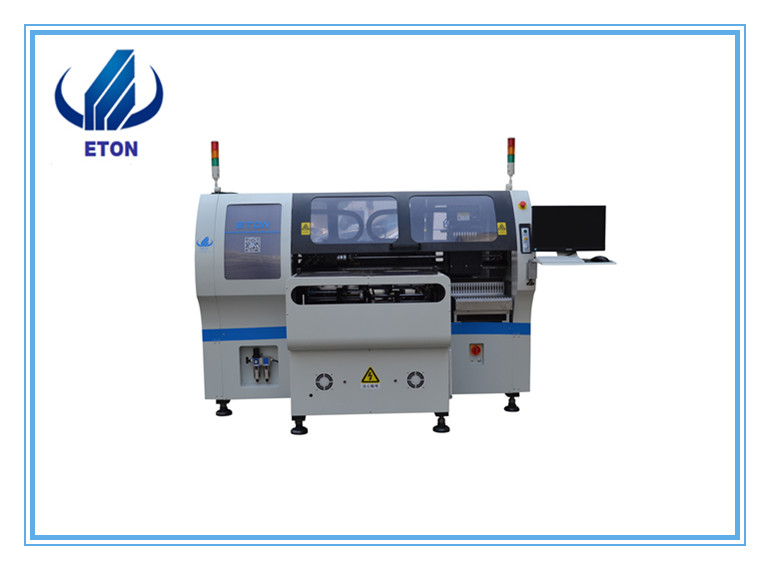

4.Product Image:

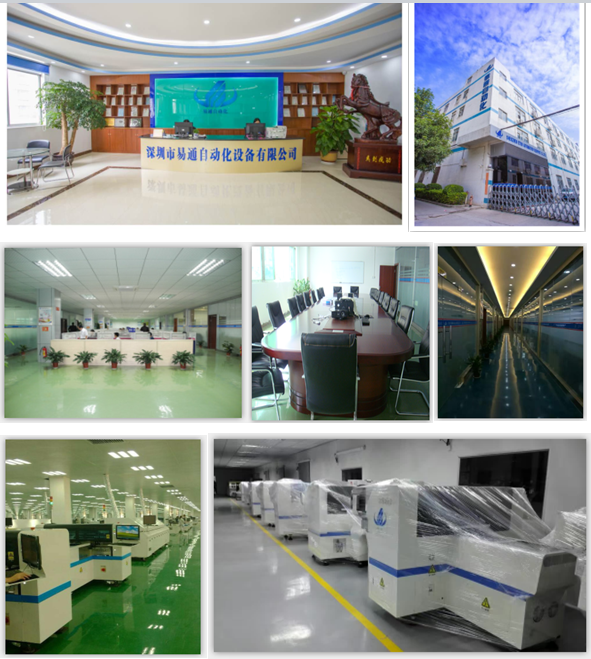

5.Company Information
Company Profile:
The Global Largest Production Capacity Supplier of LED Production Line
Professional Efficient Technology Development Innovation
Company Five Level Management Policy: sincere business,focus on R&D,manufacture by heart,considerate service, customer trust.
Eton Purpose: To create value for customers, creating benefits for society.
Eton Mission: Professional,Excellent technology,Share the results.
6.Packaging & Shipping
Package: Standard export package(Package as per customer's requirement)
Shipping: Shenzhen port within 15 days after payment
7.Our Services
Excellent After-sale Service.
Upgrade the software will be free for whole lifetime of machine.
Visit customer regularly and gather information.
8.Patents Certifications:
9.Our client:
Professional is our truth. Let's light up your business.
Name: Linda
Mobile/whatsapp/wechat: 0086 13620202581
Skype: lindahe808
Email: linda@eton-mounter.com
QQ: 2423629597
