High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards

  • 1
  • 2
  • 3

Brand Name : ETON

Model Number : YT-101S

Certification : CE,CCC,SIRA

Place of Origin : China

MOQ : 1 Set

Price : USD 46,000.00/ 1Unit/Units

Payment Terms : L/C, T/T

Supply Ability : 50 Sets per month

Delivery Time : 30 work dayes

Packaging Details : Filming packing、vacuum packing、wooden packing

Dimension(L*W*H) : 2154*1376*1762mm

Weight : 1700kg

PCB length width : Max size:500*350mm

PCB thickness : 0.5~4.5mm

Repeat precision : ±0.02mm

Mounting height : ≤20mm

No.of camera : 2 PCS

Components range : Min 0201~40*40MM Packages and IC etc

Rail : Rail 1 is fixed

Power consumption : 380AC50HZ 4KW

Optimum Mounting speed : 40000CPH

No. Of feeders station : 16 PCS ,tape reel packages 32 PCS

No. Of head : 10 PCS

Feeding way : Intelligent electric feeder with double motor

Contact Now

45000CPH SMT Mounter Multifunctional High Precision

Product description

The newly launched 10-head high-precision medium-speed multi-function placement machine can

mount more than a dozen products. We can provide free installation and teaching services

High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards



Technical Parameter

Dimension 2154*1376*1762mm
Total weight 1700kg
PCB Length width 500*350mm 50*50mm
No.of camera 2PCS
Mounting precision ±0.02mm
Mounting speed 45000CPH
Mounting height <=20mm
No.of head 10pcs
No.of feeders station 32Ppcs
Feeding way Intelligent double head feeder



SMT Line solution



The blowing is the function of each machine:

1.Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components; 2.Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

3.Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board;

4.Reflow oven is to melt the solder paste to fix and bond the components and PCB board.​

High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards

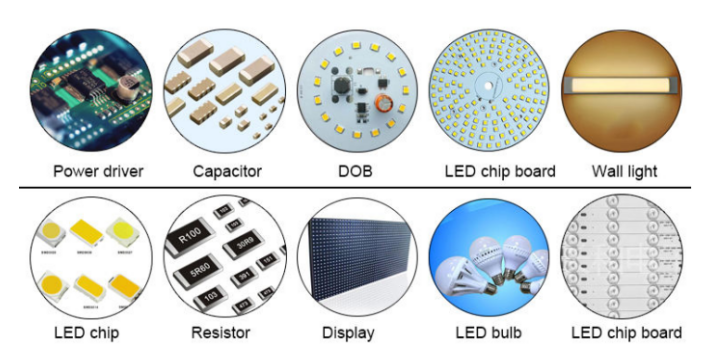

Application

High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric BoardsHigh Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards

Bulb light,DOB bulb,Display,Electric board,Power driver,LED chip board,Wall light,Street light etc.



Company show



The company was founded in 2011, it is a manufacturing and process solution provide focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.

There are 14 years of high-speed Mounter research and development experience, and the production Capacity reaches 500000 CPH.

High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards



Market

As for the 10 years experiences of trading with more than 20 countries and region, we have many partner of foreign countries, as South, Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. For more you can see is as blowing:

High Precision SMT Mounter Multifunctional For LED Lights / Power Driver / Electric Boards

Introduction of exhibition



Our company go to many places to participate in the exhibition.

Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.

Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.

Service

Professional solutions: Provide professional SMT Full line solutions

Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge

Free Installation: On-site free installation to ensure smooth production.

Free Technical Training: Professional training of operating and maintenance.

Free Technical Support: 7 * 24 technical online support.

Free Software Upgrade: Offer free software upgrade whole lifetime



FAQ



Q. What is the smallest mounting components of your machine?

A. The min size is 0201 of this machine.



Q. What services can you provide?

A.1)We provide whole line solution for our clients;

We have local engineers in India, Egypt, Turkey. As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learned how to operate the machine, our service is very convenient;

We also have Chinese engineers which provide online services to operate the machine to solve the problems with the machine;

We will visit our clients for twice a year to operate the machine and view the status of the machine;

Our clients enjoy a free up grade of the machine.



Q. Whether you have professional engineers for installation of the machine in India?

A. Yes, we have professional engineers in India to provide considerable service to our clients.
