High Speed 500mm Fastest Pick And Place Machine Led Bulb Making Machine

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

High Speed 500mm Fastest Pick And Place Machine Led Bulb Making Machine

Brand Name : ETON

Model Number : RT-2

Certification : CE,SIRA,CCC,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : EXW USD 50000/sets

Payment Terms : T/T

Supply Ability : 50 sets per mouth

Delivery Time : 30 days after deposit

Packaging Details : Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

name : pick and place machine

PCB thickness : 0.5~5 mm

Total weight : 1250kg

Feeders : 64 PCS

Dimension : 1195*1930*1750mm

PCB size : 400*300mm

Warranty : 1 year

Nozzles : 20 PCS

Contact Now

high speed 500mm PCB 0402 smd fastest led bulb making machine led light machine



Features of smd pick and palce machine

Magnetic linear motor multifunctional pick and place machine.
Mounting components: LED/capacitors/resistors/IC/shaped components/etc.



Exclusive patented technology

Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Auto-optimization after coordinates generated, etc.



RT-2
PCB PCB length width Max:400*300mm min:50*50mm
PCB thickness 0.1~6mm
PCB clamping Electric clamping
Mounting mode

Group to pick and separate to place

Separate to pick and separate to place

O.S. system Windows 7
software R&D independently
display Touch screen monitor
Input device Keyboard , mouse

Vision

system

No.of camera

4 sets of imported camera

Vision alignment ,mark correction

Mounting precision 0.04mm(repeat precision)
Mounting height <22mm
Mounting speed 60000~70000CPH
Components space 0.2mm
Power 380AC 50HZ
Power consumption 8KW
Gas consumption 0.4~0.6mpa 300N/min
Transmission speed >1500mm/sec
Transmission direction Single left to right or right to left
Transmission mode Auto online drive
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding system No.of feeders station 64 PCS
No.of nozzles 20 PCS
Feeding way Electric feeder with double motor



High Speed 500mm Fastest Pick And Place Machine Led Bulb Making Machine



What it can do ?
Now the LED display LED lights and other products, ETON placement machine can be mounted. LED mounting range is relatively wide, all kinds of LED components, resistors, capacitors, special-shaped components can be mounted. At the same time, we can recommend different models with different speeds according to customers' production requirements.

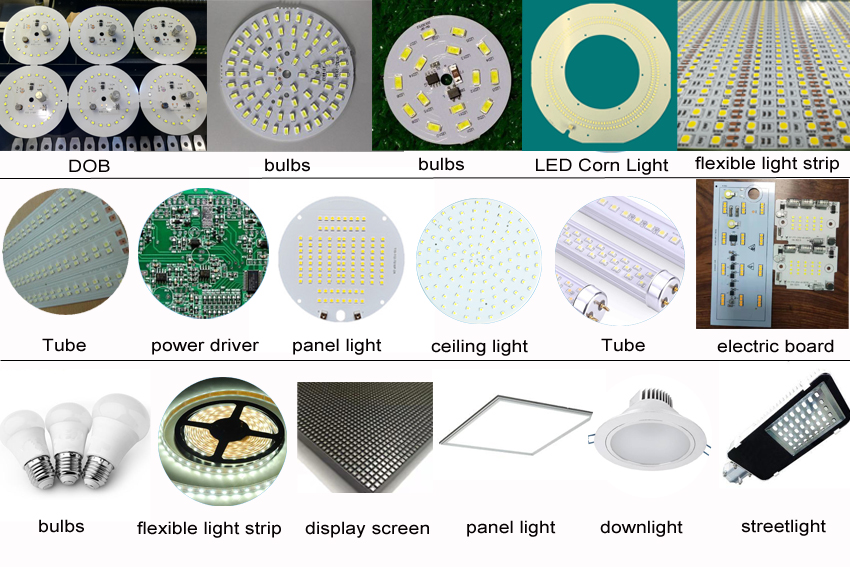

What product RT-2 can produce?
RT-2 pick and place machine suitable led products,such as led light,led bulbs,led tubes,rope light,led flexible strip light,panel light,led display screen,power driver,etc.

High Speed 500mm Fastest Pick And Place Machine Led Bulb Making Machine



Services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!



FAQ

1,How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
2,What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
3,How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4,Is your software interface in English?
English interface and Chinese interface are both available.
5,How is the warranty?
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
