SMT pick and place machine apply precision electrical PCB board and complicated IC

  • 1
  • 2

Brand Name : ETON

Model Number : YT202S

Certification : CCC CE SIRA

Place of Origin : China

MOQ : 1 SET

Supply Ability : 50 PCS/month

Packaging Details : Vacuum wooden box

Name : pick and place machine

Warranty : 1 year

Length : 2788mm

Width : 1686mm

Height : 1357mm

Total weight : 1700kg

Contact Now

SMT pick and place machine apply precision electrical PCB board and complicated IC

Product description

1. Dual modules, dual guide rails, each module is independent system control, does not affect each other, independent of each other.

2. Double-track feeding board, the track can be changed according to the production conditions, and the production can be flexibly

3. The high-precision universal machine can not only mount all LED lights, but also mount common electronic equipment applications. The smallest component can be mounted on 0201, and the maximum height is 20mm.

4. Capacity 80000CPH under optimal conditions.

5. The feeder is a Docking cart, which is convenient for changing materials.



Vision system

1. Three-color lighting identification technology, the PCB board can also be identified by slight oxidation
2. The camera adopts the industry's leading brand, with high precision, and with industrial computer, it can perform various tasks



Parameter

PCB sized

Max:500mm*450mm(single PCB)

500mm*300mm(double PCB)

PCB thickness 0.5-4.5mm
Off-line programming Available
Repeat precision ± 0.02mm
Transmission mode Online drive
X,Y,Z Axis drive way High-end magnetic linear motor +Servo motor
Feeding way Intelligent Double head Feeder
No. of Heads Double side:20pcs(single side:10pcs)

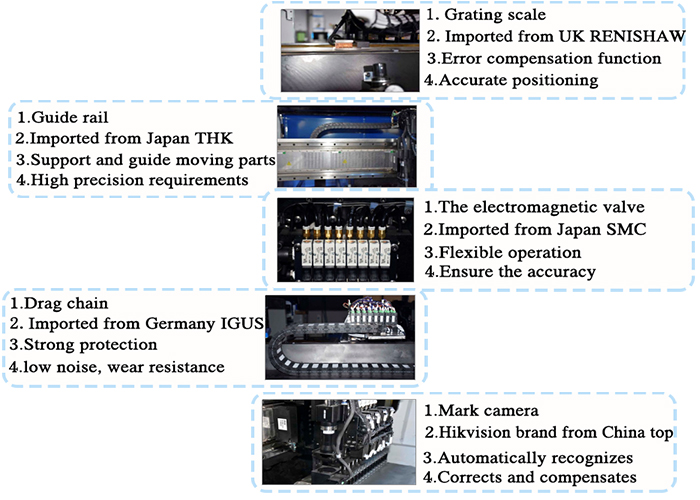

Main part

SMT pick and place machine parts are selected from the world's leading brands, with high quality, high precision and long service life.

SMT pick and place machine apply precision electrical PCB board and complicated IC

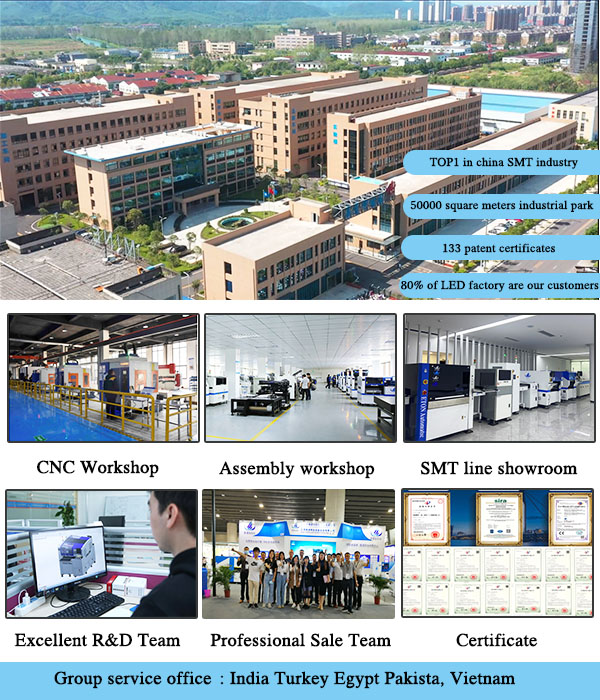

Why choose us

Our company focuses on the production of LED chip manufacturing machines, and has independently developed the world's first technological invention patents and property rights technology, including 9 invention patents, 12 software copyrights and 112 practical patents. It has won various certificates, such as well-known brands in Shenzhen and national advanced technology enterprises.

SMT pick and place machine apply precision electrical PCB board and complicated IC

Exhibition

Our exhibitions mainly include India exhibition, Pakistan exhibition, Thailand Exhibition, Egypt exhibition, Turkey exhibition, etc. the following are the photos of the exhibitions we have participated in and the different LED lamp manufacturers we have cooperated with.



Package

We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.



FAQ

Q1: What are the terms of payment?

A: FOB Shenzhen is OK

Q2: Why are your products more expensive than others?

A:I am more expensive than others because we use imported brand parts to ensure the quality. I think we should see the longer-term value brought by our products, such as the market occupied by the increase of output.

Q3:Is there any difference between your multi-function machine and your special machine?

A: The multi-function machine can mount a variety of products, and the special machine is best to mount lamp tubes and strips. The biggest difference belongs to the difference of function and production capacity.
