1.5m light bar solder printer machine

Brand Name : ETON

Model Number : ET-S1500

Certification : CCC/CE/SIRA

Place of Origin : China

MOQ : 1 set

Machine name : Semiautomatic stencil printer machine

Machine application : Led tube light

Machine price : Lower

Machine warranty : One year

Contact Now

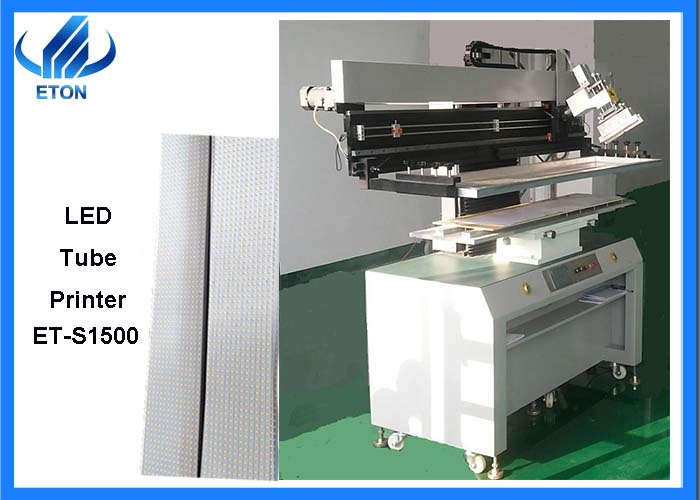

1.5m light bar solder printer machine



Features of solder paste printer:

(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;

(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;

(3) the scraper holder can adjust forward and backward, to select the suitable printing position;

(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;

(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.

(6) can be set unidirectional and bidirectional multiple printing methods.



Parameter of 1.5m light bar solder printer machine

Model ET-S1500
Printing area: 1500×300 mm
Plate Area: 1550×320 mm
Stencil Frame Size: 470×370 mm~1300×550 mm (L×W)
Positioning way: positioning pin
Scraper Speed: 0-100 mm/sec
Power: 220V single phase, 50/60 HZ
Power Consumption: 120 W
PCB plate thickness: 0.2-2.0 mm
Plate Trimming: Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision: +/- 0.05 mm
Air supply: 5-7 KGF/cm2
Weight: 420 kg
Dimension: (L)1600 x(W)900 x(H)1650 mm


1.5m light bar solder printer machine

RFQ

1. What is the max PCB this module could be mounted?

A: ET-S1500 is ETON semiautomatic printer machine, it is suitable for max PCB size is 1500 mm length, the width could be 300mm/350mm/400mm/500mm. Could be customized according to your inquiry.



2. Do you have video for machine install and operate?

A: Yes, we are professional at SMT file. Also we will sent the video for how to install and how to operate the machine. Besides, this printer is semiautomatic, it is very easy for operating.



3. Do you have CE/CCC certificates for this printer?

A: Yes, we equipped these certificates of this printer machine.



4. What material or tool need to be prepared for this printer machine ?

A: For our stencil printer machine, mainly need prepared: Solder paste, Stencil, Scraper. Also PCB is necessary for printed.
