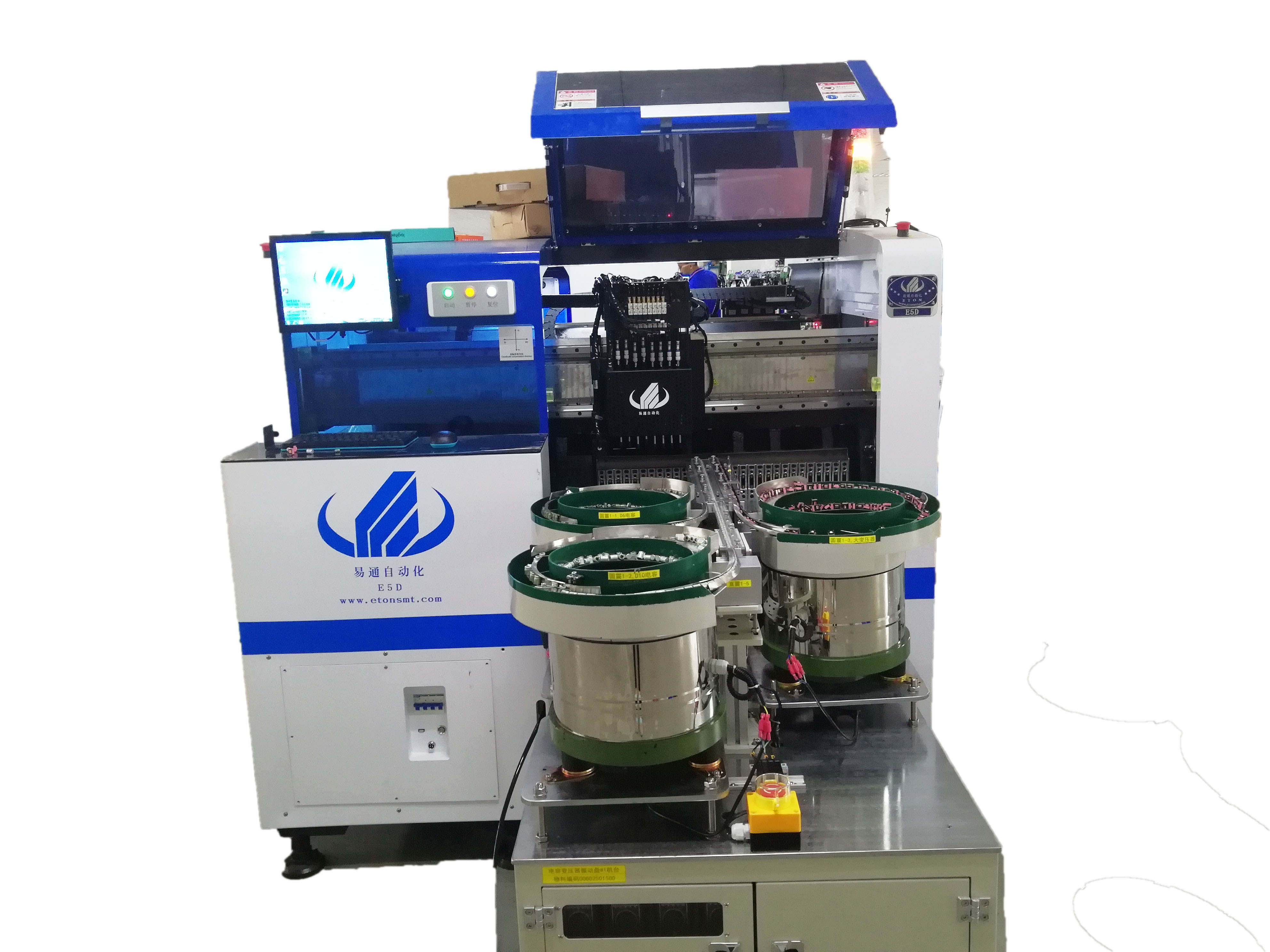

Double module magnetic linear motor multifunctional pick and place machine,totally 60 PCS feeders station and 16 heads, feeding way is electric feeder with double motor,It can meet the mounting of most components.
Easy maintenance: simple design and easy maintenance.Low cost of replacement parts, low maintenance cost.
| HT-E5D |
| PCB | PCB length width | Max:500*300mm min:100*100mm |
| PCB thickness | 0.5~3mm |
| PCB clamping | Electric clamping + Adjustable pressure pneumatic |
| Mounting mode | ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
| O.S. | system | Windows 7 |
| software | R&D independently |
| display | Touch screen monitor |
| Input device | Keyboard , mouse |
| Vision system | No.of camera | 2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) |
| Mounting height | <36mm |
| Mounting speed | 80000CPH |
| Components space | 0.2mm |
| Power | 380AC 50HZ |
| Power consumption | 8KW |
| Conveyor transmission | Max length:500mm |
| Transmission speed | >500mm/sec |
| Transmission direction | Both direction |
| Transmission mode | Auto online drive |
| Air pressure | >5.0kg /cm² |
| Electrical control | Independent research and development by ETON |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis |
| Feeding way | |
| Feeding system | No.of feeders station | Duel mode.totally 60 |
| No.of nozzles | Dual mode.totally 16 |
| Feeding way | Electric feeder with double motor |

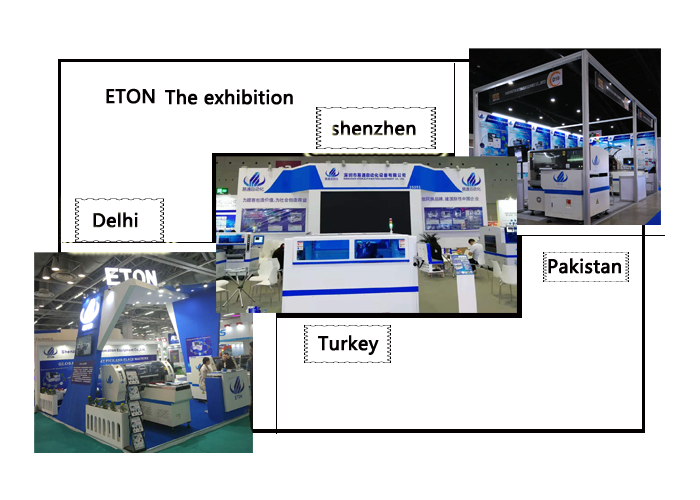

exhibition
reference configuration
1. Control system: industrial computer + precision motion control card + touch screen monitor
2. Software system: Chinese and English operating system R&D independently by ETON.
3. Sport motor: panasonic original motor
4. Mounting nozzle: independently developed several types of nozzles.
5. Sliding device: precision screw rod and linear guide rail.
6. Visual device: MARK point recognition
7. Feeding way:Electric feeder with double motor
Before services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
Packaging & Delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
