high quality servo pick and place multifunctional SMT LED pick and place machine
Product description
Double-module magnetic linear motor multifunctional pick and place machine
Vision for the flight identification, Mark correction
Components: LED, capacitors, resistors, IC, shaped components, etc( Max:17mm, Min:0402)
Application: LED lens, panel light, street light, linear bulb, tube, etc
Features
| High precision | Can mounting 0402 component, and the mounting precision reach 0.04mm |
| High speed | the capacity reach 90000CPH, with 28 PCS heads and 48 PCS feeder stations |
| Dual system, dual module multi-functional mounting machine. To produce two different products at the same time |
| R& D Software | Independent and development software, free upgrades for life |
Technical parameter
| ET-E8D-1200 pick and place machine |
| Dimension | Length* Width* Height | 3150mm*2250mm*1650mm |
| Total weight | 2500kg |
| PCB | PCB Size | Max:1200*300mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| | Mounting mode | Group picking and separate placing, separate picking and separate placing |
| O.S. | System | Windows 7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Vision System | No. of camera | 4 sets |
| | Vision for the flight identification, mark correction |
| | Mounting precision | +0.04mm |
| | Mounting speed | 90000CPH |
| | Components | LED, capacitors, resistors, IC, shaped components, etc. |
| | No. of feeders station | 48PCS single module |
| | No. of nozzles | 24PCS double module |
| | XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| | Feeding way | Electric feeder with double motor |
Company information

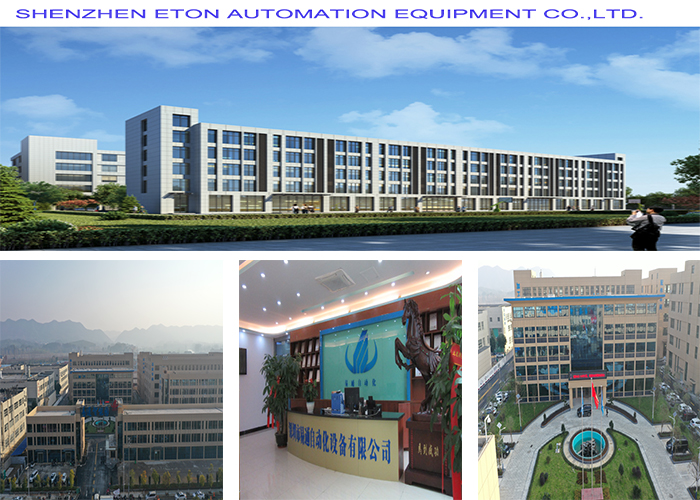

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Certificate

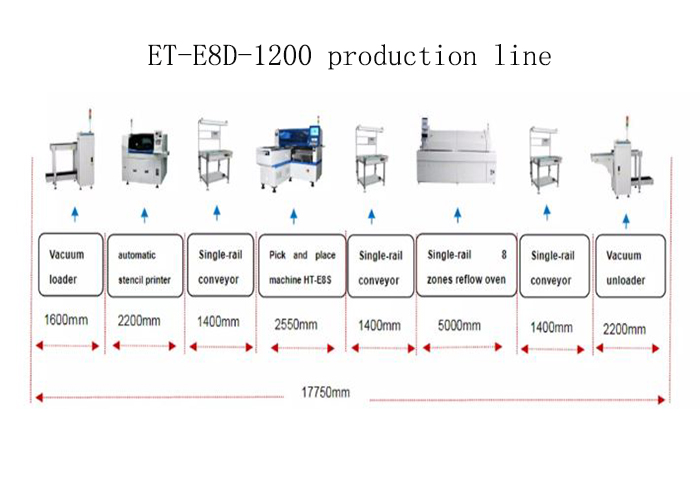

Product line
Remarks
Packaging :vacuum wooden boxes packing
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery
After sales service:
Warranty period: one year
Provide latest information about technology and equipment
Free software upgrade
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park.
Q: Is your software interface in English?
English interface and Chinese interface are both available.
