LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

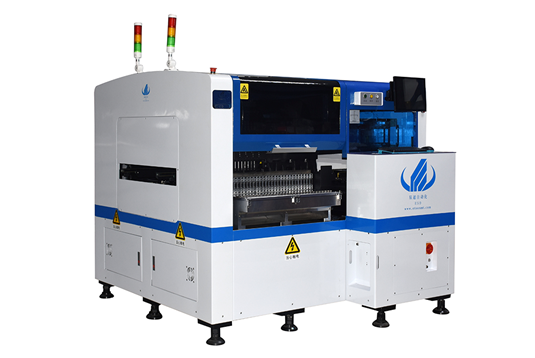

LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW

  • 1
  • 2

Brand Name : ETON

Model Number : HT-E5D

Place of Origin : CHINA

MOQ : 1

Price : FOB USD 76000~86000/sets

Payment Terms : L/C, T/T

Supply Ability : 50 sets per mouth

Delivery Time : 30 days after deposit

Packaging Details : Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

name : pick and place machine

Warranty : 1 year

PCB length width : max 500*300mm min 100*100mm

Dimension : 1650*2000*1550 mm

Power : 380 AC 50 HZ

Software : R&D independently

Power consumption : 8KW

System : windows7

Total weight : 2800kg

Visual camera : 4 sets of imported camera

PCB thickness : 0.5~3mm

Contact Now

led light making machine Electronic Products Machinery Visual camera smart feeder



reference configuration
1.Control system: industrial computer + precision motion control card + touch screen monitor
2.Software system: Chinese and English operating system R&D independently by ETON.
3.XYZ axis Driver way: magnetic linear motor and servo motor
4.Mounting nozzle: independently developed several types of nozzles.
5.Sliding device: precision screw rod and linear guide rail.
6.Visual device: MARK point recognition
7.Feeding way:Electric feeder with double motor



Details
It adopts the method of Group to picking and separate to placing,Separate to picking and separate to placing.Each head can be controlled independently, and Flexible mounting of various components.

XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.

Double module magnetic linear motor multifunctional pick and place machine,totally 60 PCS feeders station and 20 heads, feeding way is electric feeder with double motor,It can meet the mounting of most components.

LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW

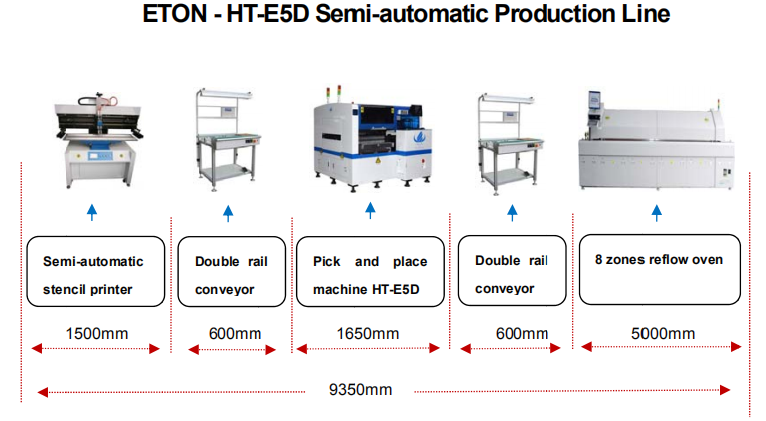

A whole production line
Pick and place machine:The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
stencil printer:Operate the stencil printer to print the solder paste onto the PCB
reflow oven:The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
Conveyor:Check whether the PCBA is misaligned or shift.

LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW








HT-E5D led light making machine
PCB PCB length width Max:500*300mm min:100*100mm
PCB thickness 0.5~3mm
PCB clamping Electric clamping + Adjustable pressure pneumatic
Mounting mode

Group to picking and separate to placing

Separate to picking and separate to placing

O.S. system Windows 7
software R&D independently
display Touch screen monitor
Input device Keyboard , mouse

Vision

system

No.of camera

2sets of imported camera

Vision for the alignment identification,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <36mm
Mounting speed 80000CPH
Components space 0.2mm
Power 380AC 50HZ
Power consumption 8KW
Conveyor transmission Max length:500mm
Transmission speed >500mm/sec
Transmission direction Both direction
Transmission mode Auto online drive
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
X,Y,X axis drive way High-end magnetic linear machine + Servo motor control for X,Y,Z axis
Feeding way
Feeding system No.of feeders station Duel mode.totally 60
No.of nozzles Dual mode.totally 16
Feeding way Electric feeder with double motor

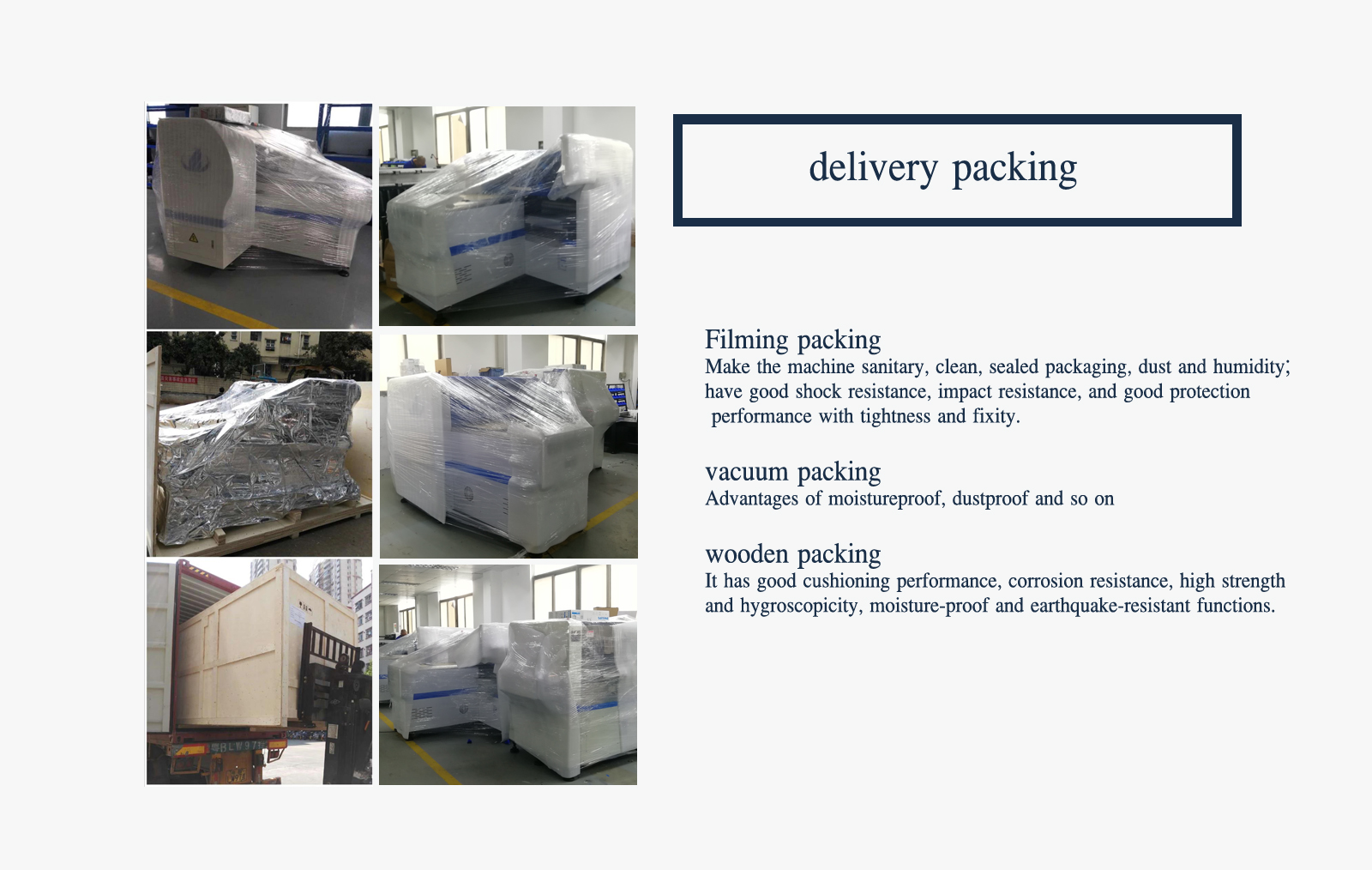

Packaging and Delivery

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.



LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW



Certificate of honor

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.



LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW





Partners&project cases

LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW

LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW



Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)

How this pick and place machine can do ?
All kinds of led light or led products or electroic boards, Such as lamp,bulbs,led tube,DOB,led strip light,rope light,panel light,street light,down light,etc


FAQ:
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
3.Is this machine difficult to operate?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.

4.What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
5.Is your software interface in English?
English interface and Chinese interface are both available.



LED Light Making 3mm PCB SMD Mounting Machine 80000CPH 8KW
